Collider Class Reference

#include <Collider.hpp>

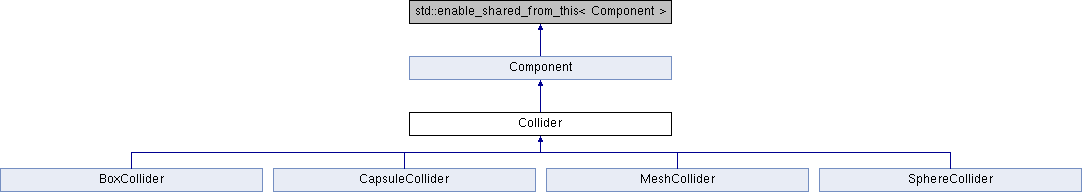

Inheritance diagram for Collider:

Public Member Functions
	Collider ()
virtual	~Collider ()
void	setTrigger (bool isTrigger)
bool	getIsTrigger ()
void	setQueryOnly (bool isQueryOnly)
bool	getQueryOnly ()
virtual void	init () override
virtual void	destroy () override
virtual void	awake () override
virtual void	setActive (bool isActive) override
void	setPhysicsMaterial (const shared_ptr< PhysicsMaterial > physMaterial)
shared_ptr< PhysicsMaterial >	getPhysicsMaterial ()
virtual shared_ptr< Component >	clone () override=0
virtual shared_ptr< ComponentDescription >	getComponentDescription () override=0
virtual void	deserialize (shared_ptr< ComponentDescription > desc) override=0
Public Member Functions inherited from Component
	Component ()
virtual	~Component ()
virtual void	tick (float deltaSecods)
shared_ptr< Actor >	getActor ()
void	setActor (weak_ptr< Actor > actor)

Protected Attributes
PxVec3	center
PxShape *	shape
shared_ptr< PhysicsMaterial >	physicsMaterial
bool	isTrigger
bool	isQueryOnly
Protected Attributes inherited from Component
bool	initWithData
bool	isActive

Additional Inherited Members
Protected Member Functions inherited from Component
void	setCopyMode (bool initWithData)

Detailed Description

Collider is a component that adds either simulates real physics for an Actor or allows it to behave like a volume trigger. Collider is an abstract parent class for all the Collider types (SphereCollider, BoxCollider, CapsuleCollider and MeshCollider)

Constructor & Destructor Documentation

Collider::Collider ( )

inline

Default Constructor

virtual Collider::~Collider ( )

inlinevirtual

Default Destructor. Virtual because it's parent class

Member Function Documentation

virtual void Collider::awake ( )

inlineoverridevirtual

Component awake override

Reimplemented from Component.

virtual shared_ptr<Component> Collider::clone ( )

overridepure virtual

Pure virtual function. Clones current component (Prototype Design Pattern)

Returns

shared_ptr to cloned Collider Component

Implements Component.

Implemented in CapsuleCollider, SphereCollider, BoxCollider, and MeshCollider.

void Collider::destroy ( )

overridevirtual

Component destroy override

Reimplemented from Component.

bool Collider::getIsTrigger

(

)

isTrigger getter

Returns

true if it's just a trigger, false if it physics simulated

shared_ptr< PhysicsMaterial > Collider::getPhysicsMaterial

(

)

physicsMaterial getter

Returns

referente to PhysicsMaterial

bool Collider::getQueryOnly

(

)

isQueryOnly getter

Returns

true if this object is only used in queries, false otherwise

isQueryOnly getter

Parameters

[in]

queryOnly

true if this object is only used in queries, false otherwise

void Collider::init ( )

overridevirtual

Component init override

Component Init override

Reimplemented from Component.

Reimplemented in CapsuleCollider, SphereCollider, BoxCollider, and MeshCollider.

void Collider::setActive ( bool  isActive )

overridevirtual

Component setActive override. Changes PhysX settings

Component setActive override

Reimplemented from Component.

void Collider::setPhysicsMaterial

(

const shared_ptr< PhysicsMaterial >

physMaterial

)

physicsMaterial getter

Parameters

[in]

reference

to PhysicsMaterial

void Collider::setQueryOnly

(

bool

isQueryOnly

)

isQueryOnly getter

Parameters

[in]

queryOnly

true if this object is only used in queries, false otherwise

isQueryOnly getter

Returns

true if this object is only used in queries, false otherwise

void Collider::setTrigger

(

bool

isTrigger

)

isTrigger setter

Parameters

[in]

isTrigger

- true if it's just a trigger, false if it physics simulated

Member Data Documentation

PxVec3 Collider::center

protected

The center of the collider

bool Collider::isQueryOnly

protected

Is this collider used for queries only?

bool Collider::isTrigger

protected

Is this collider a trigger or should it simulate real world physics?

shared_ptr<PhysicsMaterial> Collider::physicsMaterial

protected

The physics material that determines the behaviour of the physics shape

PxShape* Collider::shape

protected

The PhysX Shape of the collider

---

The documentation for this class was generated from the following files:

• /Users/guilherme_cunha/Dev/GITHUB/GUInity/Source/Collider.hpp
• /Users/guilherme_cunha/Dev/GITHUB/GUInity/Source/Collider.cpp
